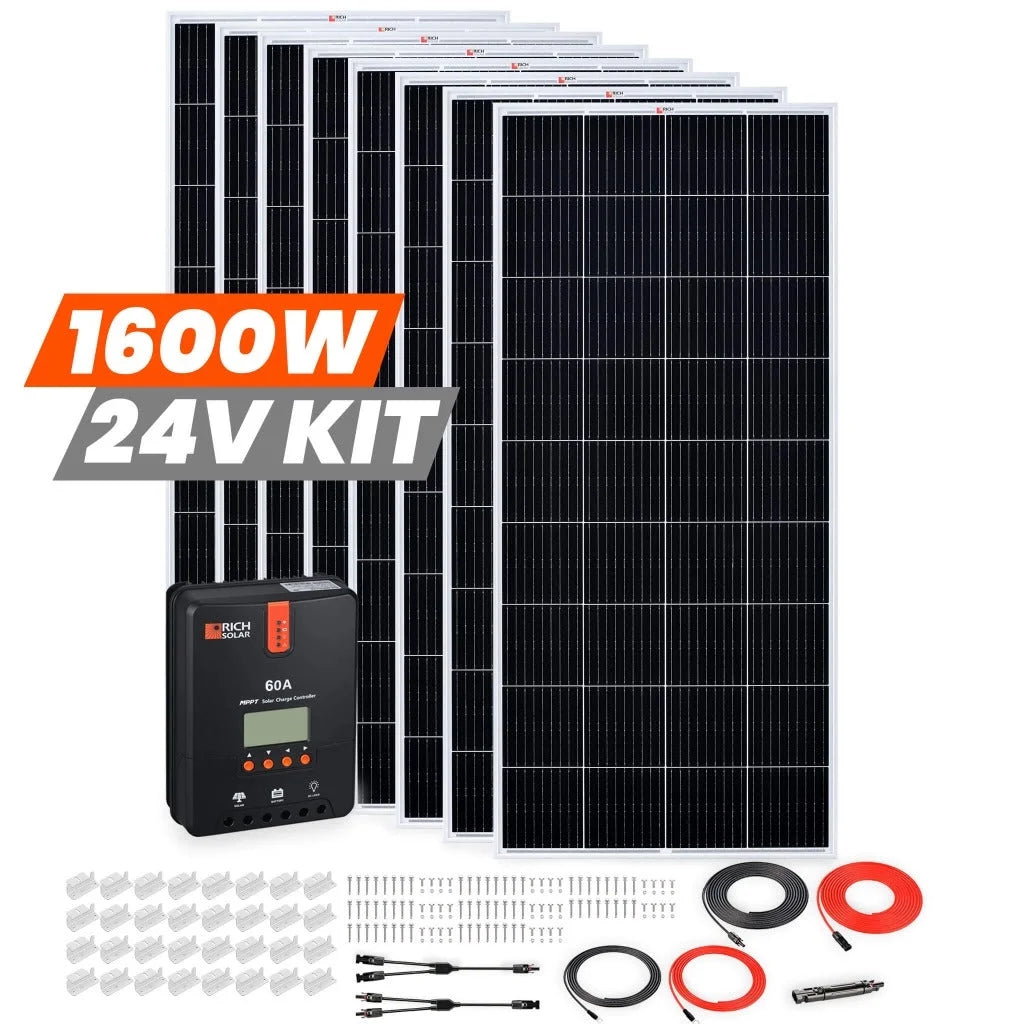

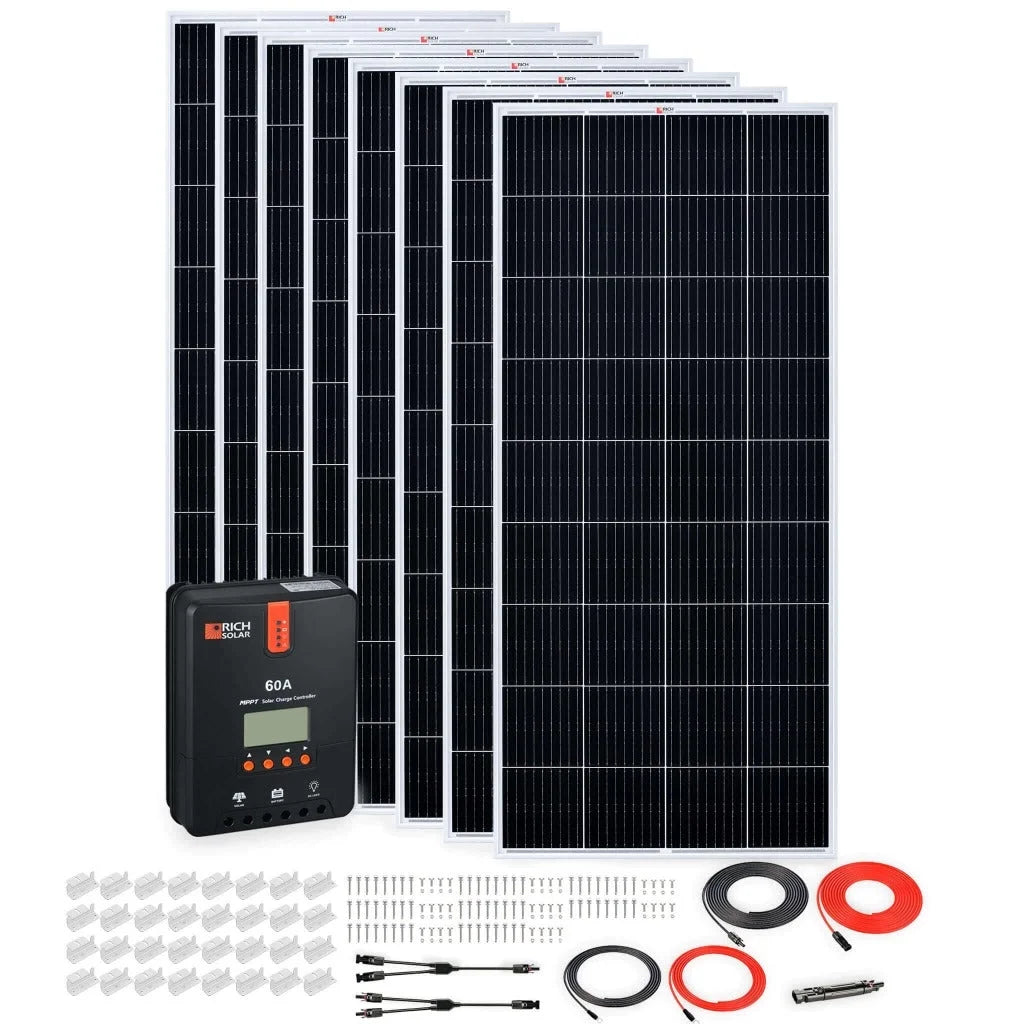

1600 Watt Solar Kit

1600 Watt Solar Kit is our largest 24V kit, containing 8 high efficiency 200W Monocrystalline panels with 9 busbars and our 60A MPPT controller. This kit can be paired with a 400AH 24V battery bank and can power most off grid applications. For a quieter, more peaceful outdoor experience, go solar now and start powering your RV, boat or trailer!

Specifications

• Maximum Power (Pmax): 200W (per panel)

• Maximum Power Voltage (Vmp): 20.4V

• Maximum Power Current (Imp): 9.80A

• Open Circuit Voltage (Voc): 24.3V

• Short Circuit Current (Isc): 10.2A

• Weight: 26.5 lbs (per panel)

• Dimensions: 58.7 x 26.8 x 1.4 in

• Controller: 60A MPPT

Features

• High Efficiency Panels: Features highest grade monocrystalline solar cells with 9 busbars and anti-reflective coating to maximize light absorption.

• Simple Installation: Includes a pre-assembled wiring harness that doesn’t require crimping tools for a "plug in and go" experience.

• Reliable Monitoring: Digital MPPT charge controller provides real-time updates of volts, amps, and amp hours while protecting the system from overcharging.

• Expandable System: All components are compatible with each other, making future upgrades, expansions, or additions simple and easy.

Package Includes

• Solar Panels: 8 x 200 Watt Monocrystalline Solar Panels

• Controller: 1 x 60A MPPT Solar Charge Controller

• Solar Cables: 1 x 20' #10 Gauge (Red) and 1 x 20' #10 Gauge (Black)

• Battery Cables: 1 x 10' #4 Gauge (Red) and 1 x 10' #4 Gauge (Black)

• Mounting Hardware: 8 x Mounting Z Brackets (one set of 4)

• Fuses & Adapters: 1 x 30A Inline Fuse Holder with Fuse; 1 x Y Branch Parallel Adapters

Warranty

• Output Warranty: 25 years
