AC Infinity AIRLIFT T10, Shutter Exhaust Ventilation Fan 10", Temperature Humidity Controller

$179.00

Sold out

Description
  • High Airflow Exhaust Fan: Crafted specifically to regulate various spaces, this fan efficiently handles temperature, moisture, odor, and dust. It is distinguished by dynamic temperature and humidity programming which comes with timers, growing cycles, and scheduling for minimum speed.

  • Advanced Wifi Connection: This fan allows for a remote connection through the advanced WiFi app. Through this app, you can access smart programs, set alarms, enable notifications, and review vital climate data. Its makeup integrates aluminum blades, steel shutters, and is approved to IP-44 standard, being highly resistant to liquids and dust.

  • Fan Specifications: This system has a Fan Size of 10 inches, and Dimensions of 13.0 x 13.0 x 7.79 inches. It provides an impressive Airflow of 631 CFM with a Noise level of 67 dBA. Additionally, it runs on robust Dual Ball Bearings.

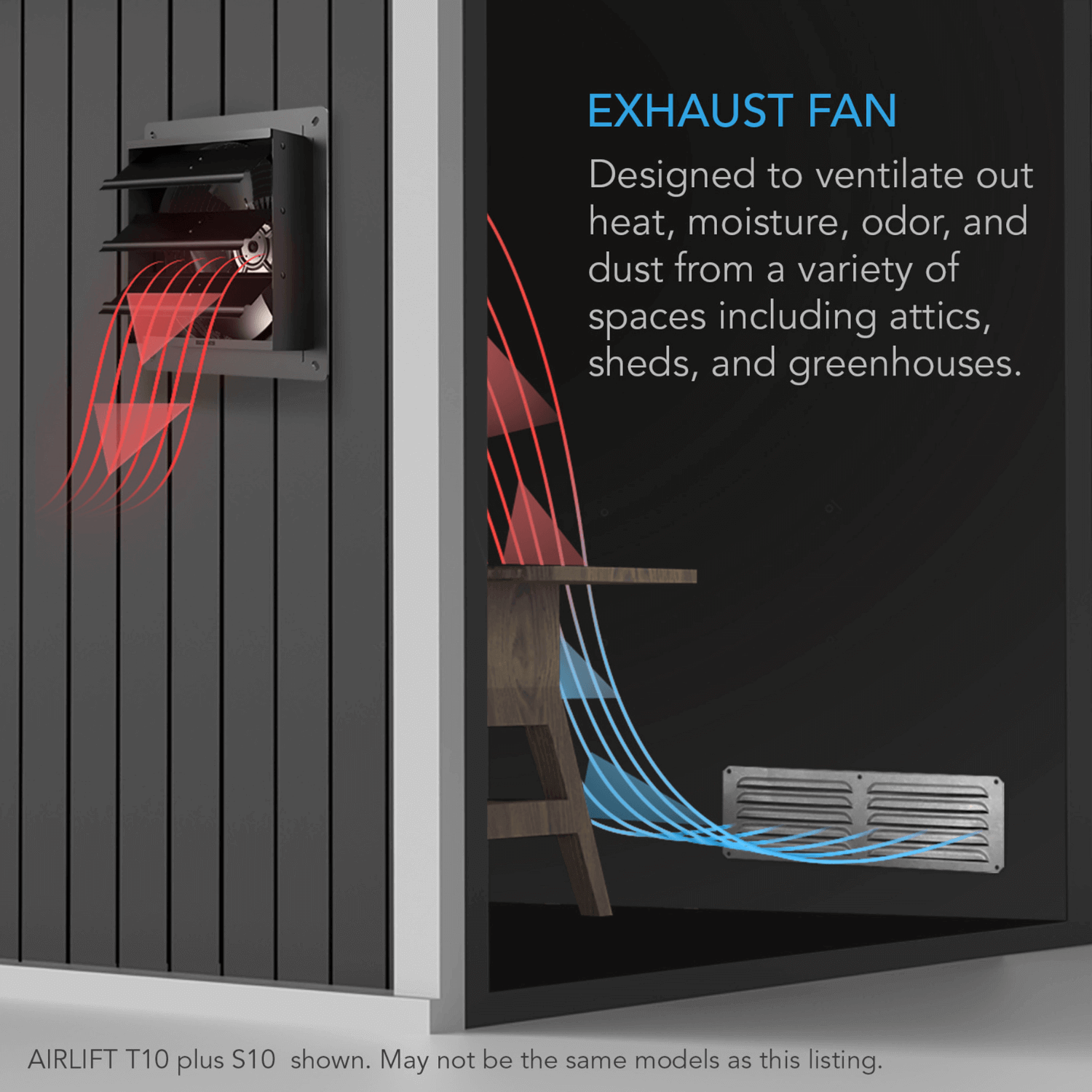

  • Comprehensive Product Description: This high-end exhaust fan delivers efficient cooling and ventilation to various clusters including greenhouses, garages, attics, workshops, and sheds. It is designed to automatically remove heat, moisture, odor, and dust from rooms, enclosures, and buildings. The package includes a handy smart controller with dynamic weather and time-based programming which can pair with multiple UIS devices. It employs a unique EC motor with PWM control to offer maximum airflow while cutting down on energy consumption and noise levels.

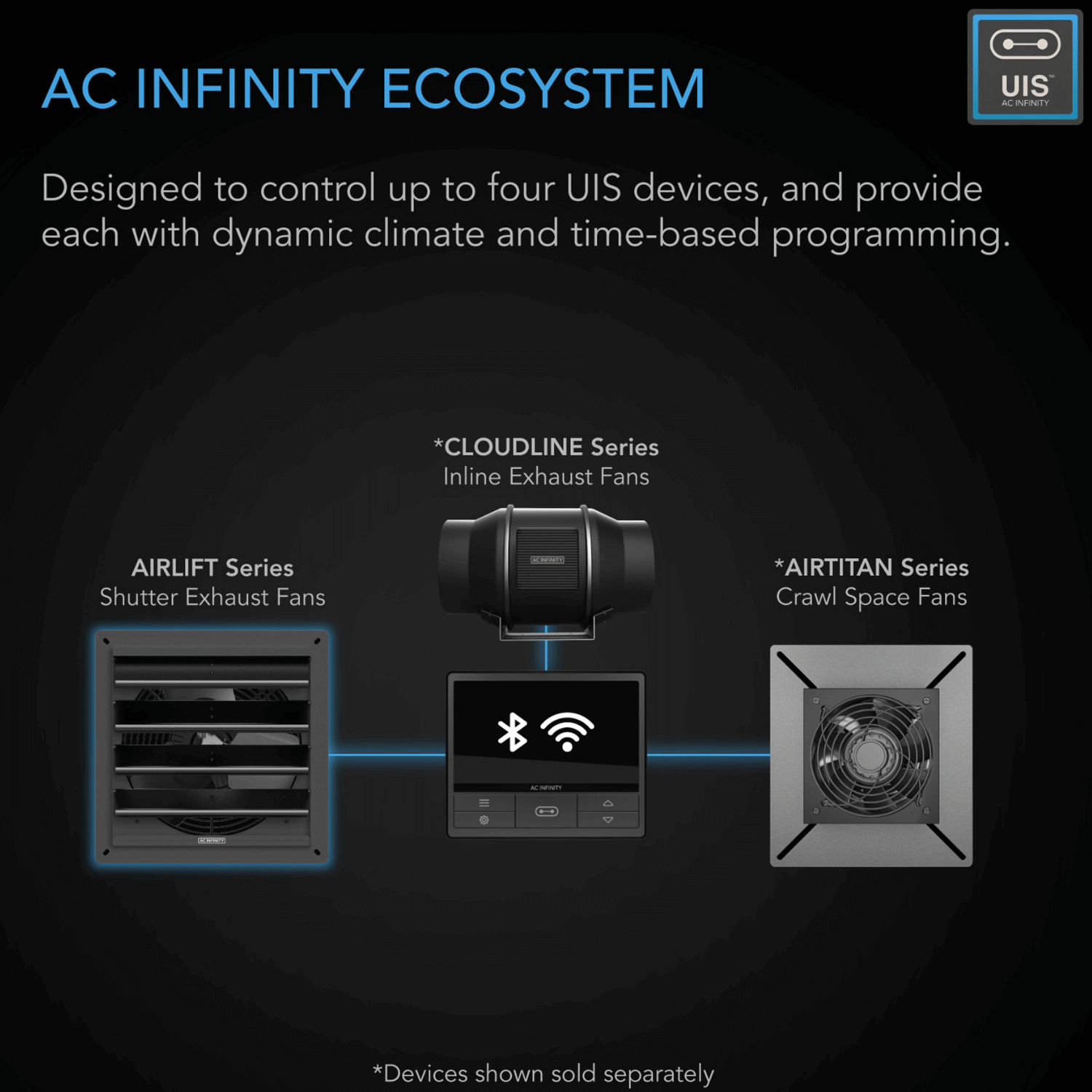

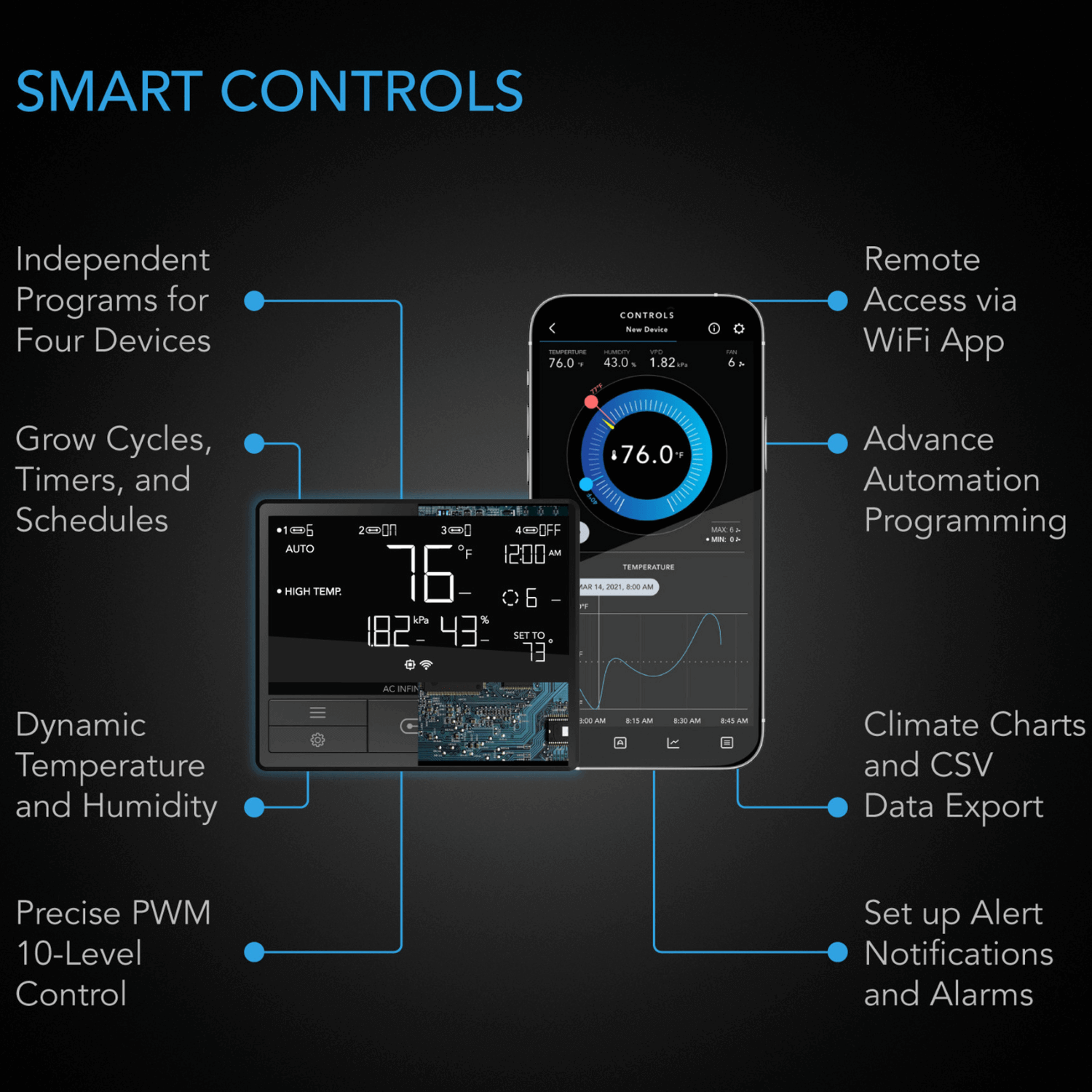

  • Innovative Smart Controller: The Controller 69 Pro is integrated with smart programming that goes beyond basic temperature, humidity, and VPD triggers by allowing you to set dynamic fan speeds responsive to these changes. Also, it allows you to set a minimum speed at which the fan will constantly run and would only increase when triggered. Its other features such as timers, cycle, and schedule modes provide unique on-demand activation for various uses. Furthermore, it allows for secure connection to the AC Infinity app via WiFi granting access to automation abilities from any location throughout the day. You can remotely access your fan, unlock advanced programs, set notifications, view historical climate charts, and export relevant climate data. This controller can also interconnect between AIRLIFT Series shutter fans, CLOUDLINE Series inline fans, and AIRTITAN Series crawlspace fans.

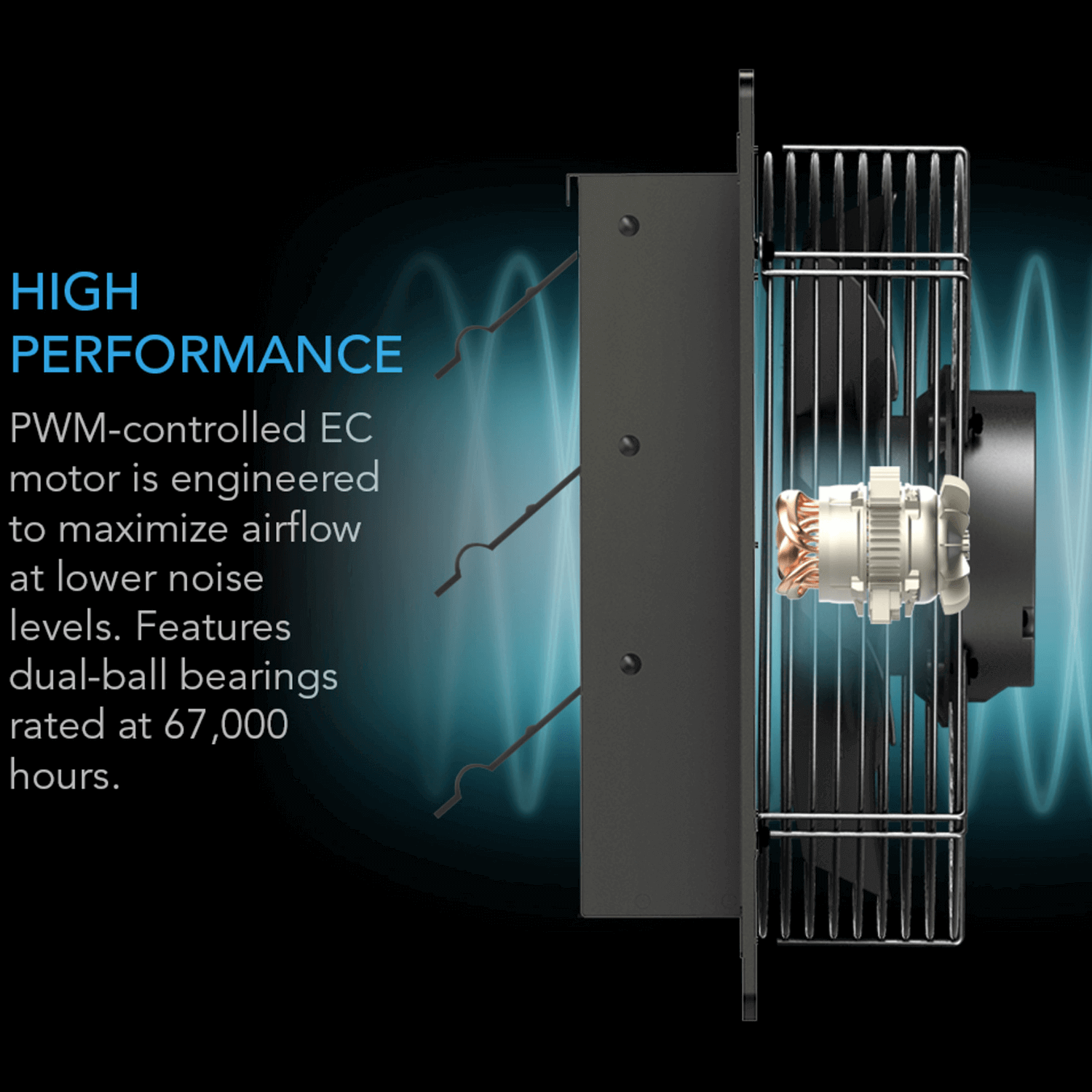

  • Heavy-duty Performance with Steel Shutters: This robust fan has steel shutters that are weather and corrosion-resistant, and shut automatically when inactive. The blades and impeller are made from lightweight aluminum, and are weight-balanced to reduce vibration. The innovative EC motor, controlled electronically using PWM (Pulse Width Modulation), helps maximize airflow while reducing noise and power consumption. Plus, the fully enclosed motor is permanently lubricated and houses dual-ball bearings rated at 67,000 hours. The unit also has an IP-44 rating to be highly resistant to dust and liquids, and performs commendably even in harsh environments.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: AIRLIFT T10
  • Product Model: AC-ALT10
  • UPC Code: 819137020900

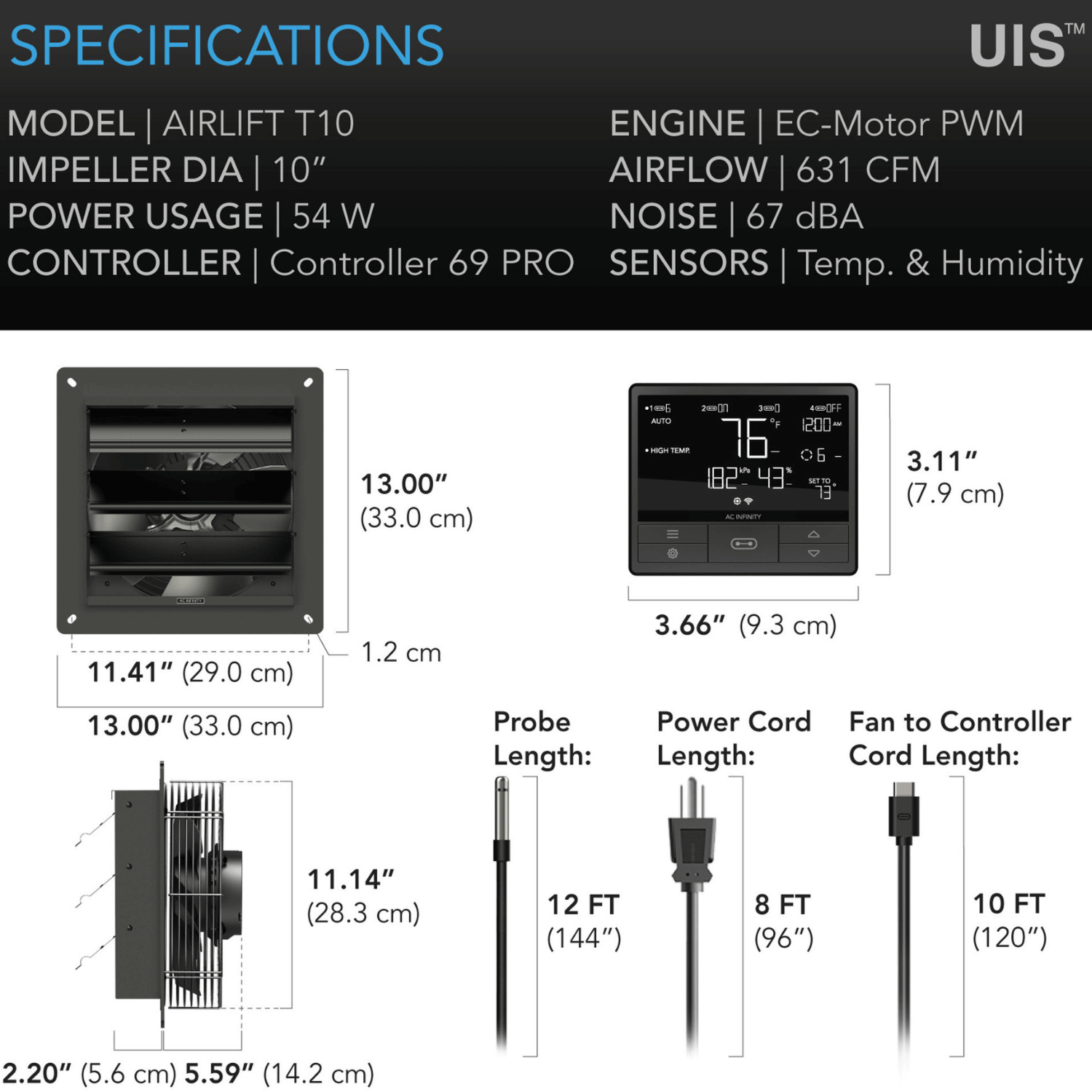

  • Product and Mounting Dimensions - Fan Unit
  • Total Dimensions: 13.0 x 13.0 x 7.79 inches (33.0 x 33.0 x 19.8 cm)
  • Frontside Enclosure Dimensions: 10.62 x 10.62 x 2.20 inches (27.0 x 27.0 x 5.6 cm)
  • Required Mounting Hole: 10.78 x 10.78 inches (27.4 x 27.4 cm)
  • Hole to Hole Distance: 11.41 x 11.41 inches (29.0 x 29.0 cm)
  • Screw Hole Size: Ø 0.27 inches (Ø 0.7 cm)
  • Cord Length to Controller: 240 inches (20 feet)

  • Product and Mounting Dimensions - Controller
  • Total Dimensions: 3.66 x 3.11 x 0.98 inches (9.3 x 7.9 x 2.5 cm)
  • Display Size: 3.5 x 1.4 inches (9 x 3.5 cm)
  • Sensor Probe Length: 144 inches (12 feet)

  • Product Performance and Technical Specs
  • Total Airflow: 631 CFM
  • Total Noise: 67 dBA
  • Static Pressure: 96 Pa
  • Operating Voltage: 100-240V AC
  • Power: 54W
  • Current: 1.0A
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
    • Data Sheets
  • Download the product manual: here
  • Download the CE Certification: here
