AC Infinity AIRLIFT T14, Shutter Exhaust Ventilation Fan 14", Temperature Humidity Controller

$229.00

Sold out

Description
  • High-Airflow Exhaust Fan: Specifically designed for the ventilation of various spaces to drive out heat, moisture, odor, and dust. It features dynamic temperature and humidity programming, including timers, growth cycles, and scheduling, and a minimum speed setup. Users can connect remotely via the WiFi app to access advanced programs, alarms, notifications, and view climate data.

  • Robust Features: Built with steel shutters, aluminum blades, and being IP-44 rated, this fan is highly resistant to both liquid and dust. The sizable fan, measuring 14” with dimensions of 16.93 x 16.93 x 8.1 inches, guarantees airflow of 1513 CFM, maintaining a noise level of 68 dBA facilitated by dual ball bearings.

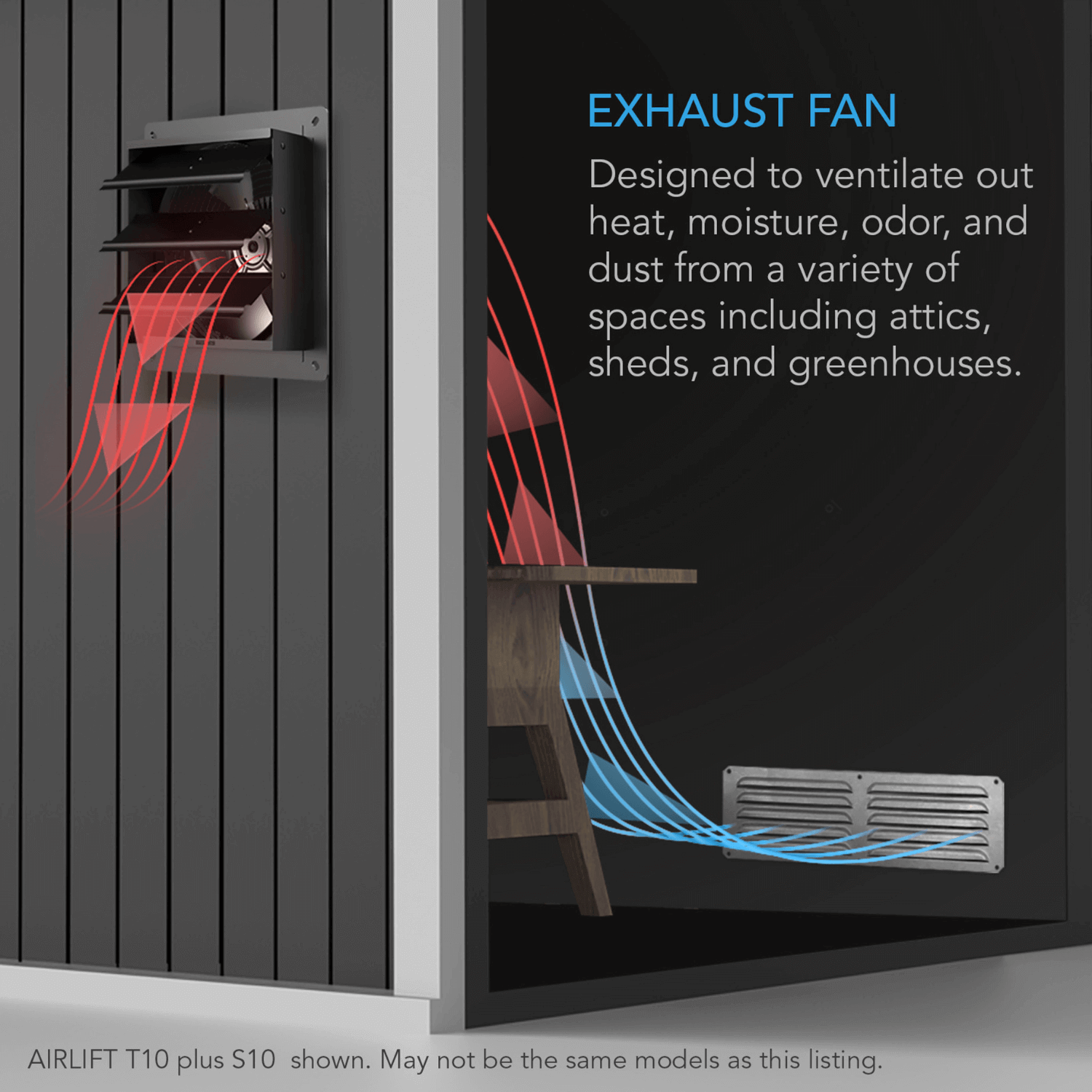

  • Product Description: This high-airflow exhaust fan is crafted to cool and ventilate areas such as greenhouses, garages, attics, workshops, and sheds. The system brings with it the ability to automatically eradicate heat, moisture, odor, and dust from various enclosures, rooms, and buildings. It includes a smart controller that is well equipped with dynamic climate and time-based programming that can connect to multiple UIS devices. The advanced EC motor with PWM control boosts airflow while minimizing energy consumption and noise levels. The durable build boasts of aluminum blades, steel wire guards, and steel shutters. It is a key component of the UIS™ platform of grow devices and smart controllers, and can integrate well with them to create an ideal environment.

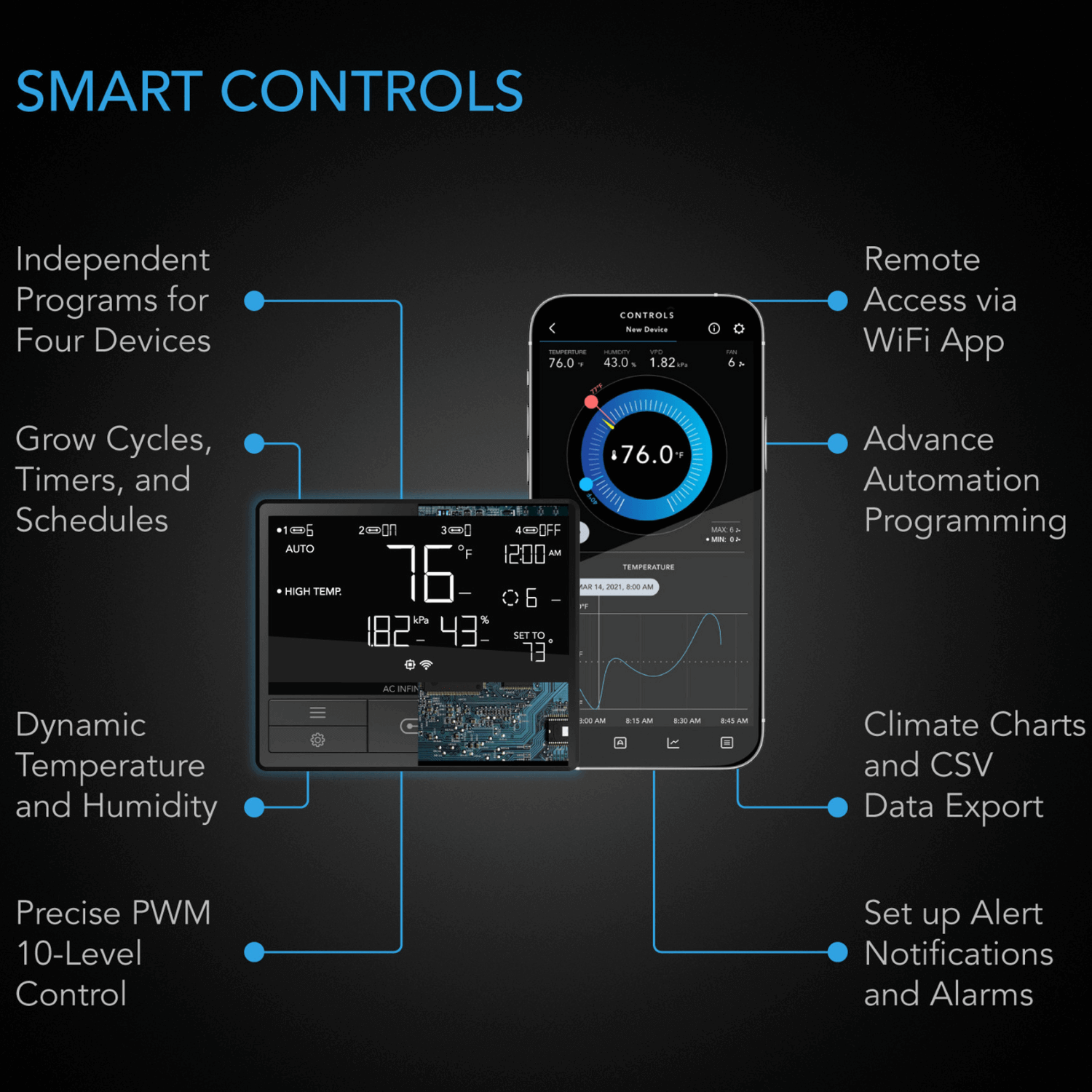

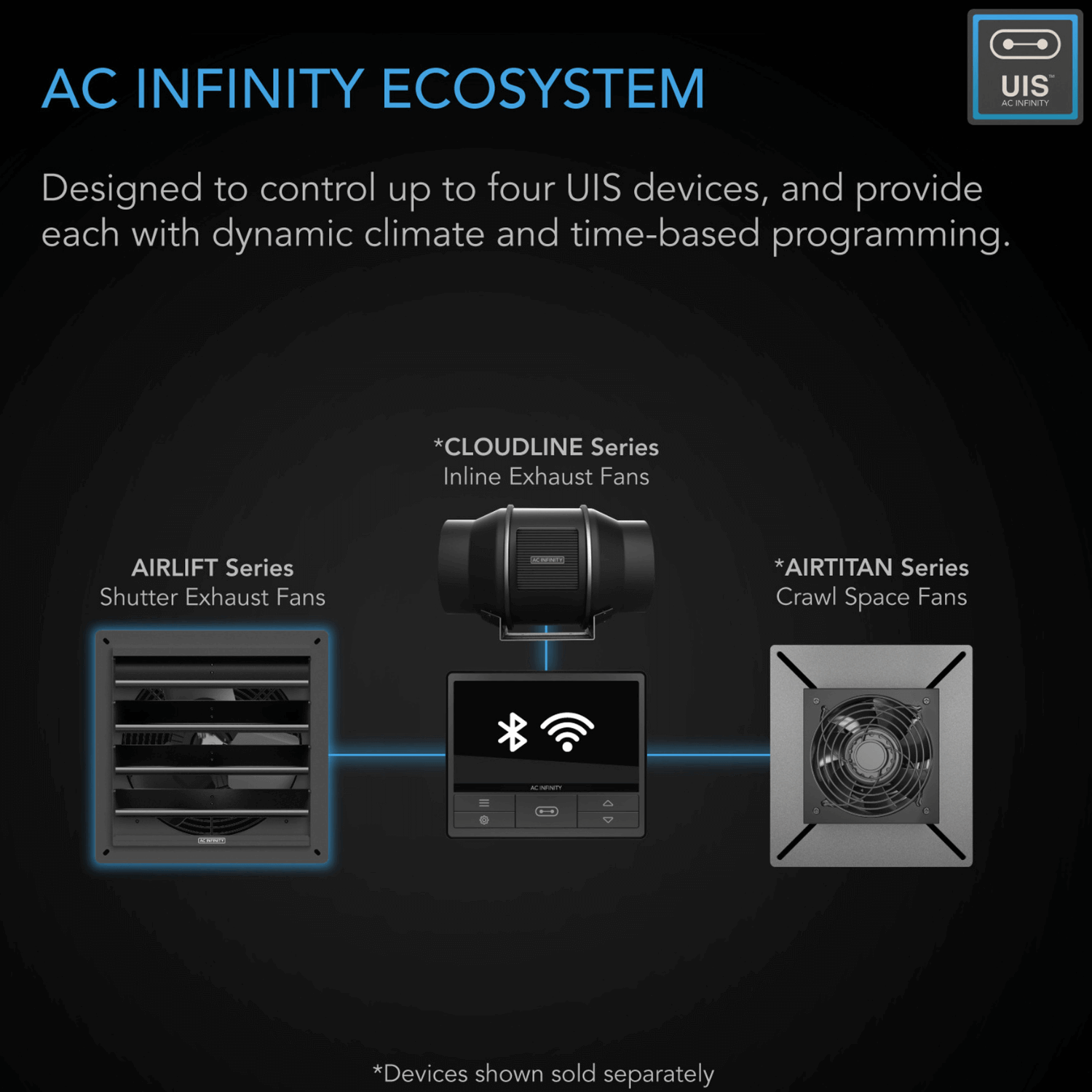

  • Smart Controller: CONTROLLER 69 PRO is known for its intelligent programming that not only includes basic temperature, humidity, and VPD triggers but also gives you the flexibility to set dynamic fan speeds that respond based on changes. It allows you to preset a minimum speed that the fan will constantly run at and would only increase when invoked. Timer, cycle, and schedule modes provide added custom on-demand activation for various uses. It connects securely to the AC Infinity app via WiFi, facilitating automation capabilities from anywhere during the day. The users can access the fan remotely, set notifications, opt for advance programs, review historical climate charts, and export CSV data. This controller can merge and match connectivity between AIRLIFT Series shutter fans, CLOUDLINE Series inline fans, and AIRTITAN Series crawlspace fans.

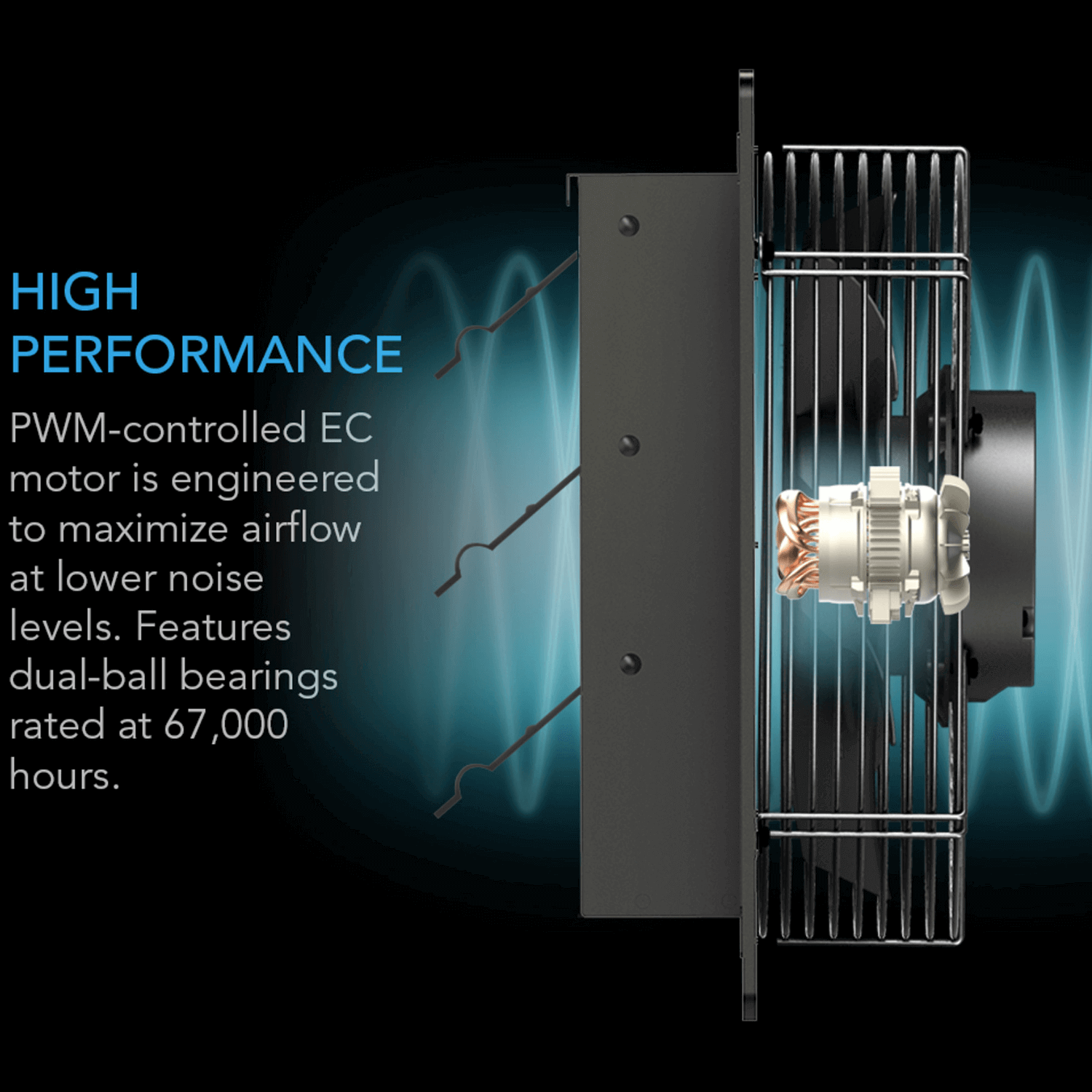

  • Heavy-duty Performance: The fan features both weather and corrosion-resistant steel shutters, which automatically close when not in use. The blades and impeller are designed with lightweight aluminum, weight-balanced to minimize vibrations. Its state-of-the-art EC motor with electronic control using PWM (Pulse Width Modulation) maximizes airflow while reducing noise and power consumption. The fully enclosed motor is also permanently lubricated and houses dual-ball bearings with a life rating of 67,000 hours. The device is resistant to dust and liquids with an IP-44 rating, performing well even in harsh environments.
    • Specifications
  • Manufacturer: AC Infinity Inc.
  • Product Name: AIRLIFT T14
  • Product Model: AC-ALT14
  • UPC Code: 819137020924

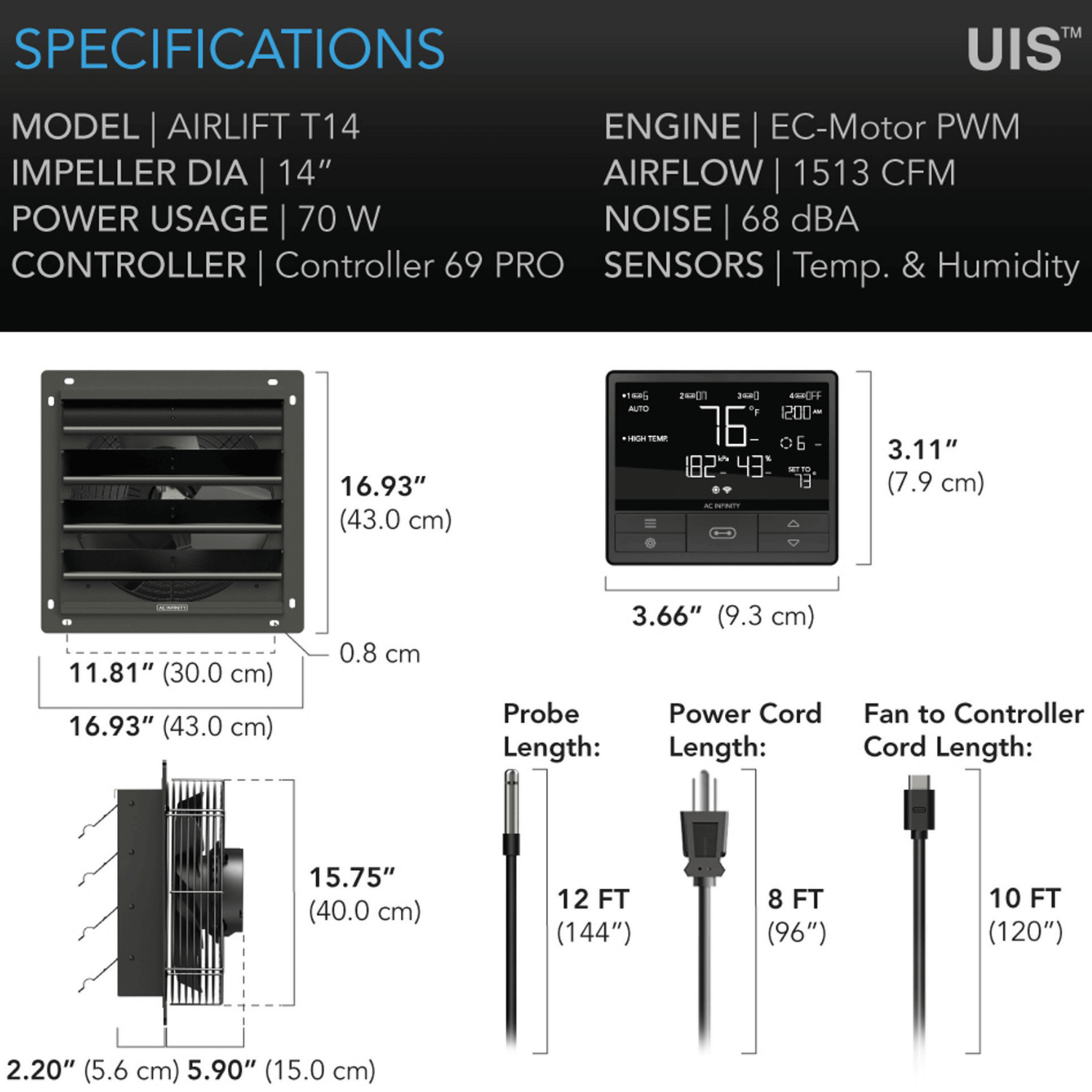

  • Product and Mounting Dimensions - Fan Unit
  • Total Dimensions: 16.93 x 16.93 x 8.1 in (43.0 x 43.0 x 20.6 cm)
  • Frontside Enclosure Dimensions: 14.52 x 14.52 in (36.9 x 36.9 cm)
  • Required Mounting Hole: 14.68 x 14.68 in (37.3 x 37.3 cm)
  • Hole to Hole Distance: 15.75 x 15.74 in (40.0 x 40.0 cm)
  • Screw Hole Size: Ø 0.27 in (Ø 0.7 cm)
  • Cord Length to Controller: 240 in (20 feet)

  • Product and Mounting Dimensions - Controller
  • Total Dimensions: 3.66 x 3.11 x 0.98 in. (9.3 x 7.9 x 2.5 cm)
  • Display Size: 3.5 x 1.4 in. (9 x 3.5 cm)
  • Cord Length to Plug: 96 in (8 feet)

  • Product Performance and Technical Specs
  • Total Airflow: 1513 CFM
  • Total Noise: 68 dBA
  • Static Pressure: 70.46 Pa
  • Operating Voltage: 100-240V AC
  • Power: 70W
  • Current: 1.2A
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 32 to 140°F
  • Fan Bearings: Dual Ball
  • Life Expectancy: 67,000 Hours
    • Data Sheets
  • Download the product manual: here
  • Download the CE Certification: here
