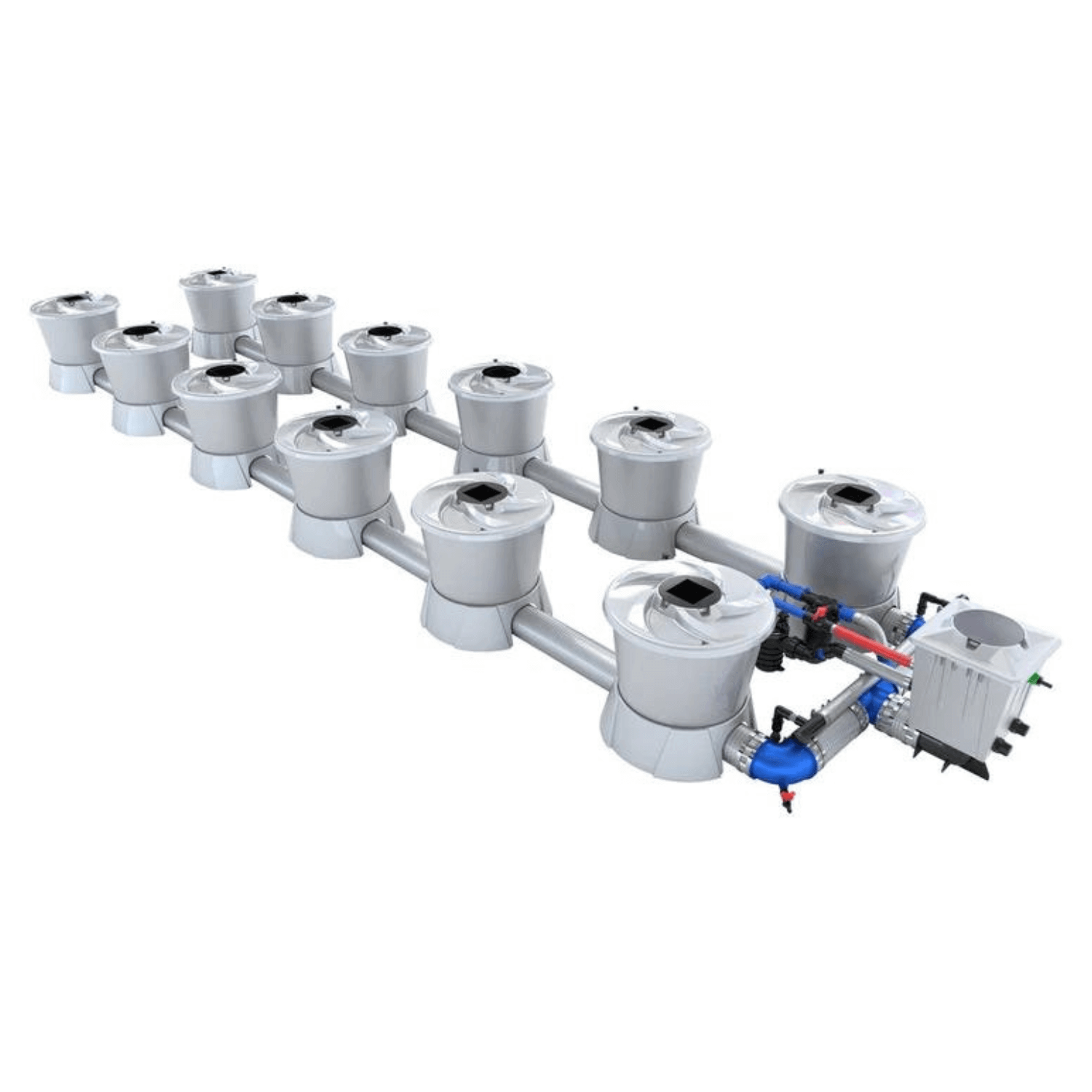

ALIEN Hydroponics V-SYSTEM 12 Pot 2 Row Kit

$4,552.51

Only 10 stock left

Description
  • Key V-SYSTEM Benefits
  • Direct nutrient distribution: The V-SYSTEM allows for direct distribution of nutrients to your plants, ensuring optimal growth and vitality.
  • Maximum oxygen saturation: Utilising a unique system, the V-SYSTEM can achieve maximum oxygen saturation which promotes faster, healthier plant growth.
  • Vortex fluid motion: The V-SYSTEM uses a vortex fluid motion to efficiently deliver nutrients and oxygen to your plants.
  • Naturally aspirated and No heat transferred: The V-SYSTEM operates in a natural, aspirated manner without any heat transfer, promoting healthier growth in a controlled environment.
  • Supports large plants: The V-SYSTEM supports growth for all kinds of plants, including particularly large species.
  • Pots and system completely drain: The pots and system can be thoroughly drained to ensure a clean, healthy growth environment.
  • Prevents root clogging and No air pump needed: The V-SYSTEM is designed to prevent root clogging and doesn't require an air pump, thereby reducing maintenance and setup efforts.
  • Made in Britain: V-SYSTEM products are made with exceptional British quality and craftsmanship.

  • Key V-SYSTEM Features:
  • 15 gallon (58L) V-POT: Each V-SYSTEM comes with a suitably large 15-gallon pot for growing a variety of plants.
  • Water fill line and Total-drainage bases: The V-SYSTEM includes a clear water fill line and total-drainage bases to ensure an ideal hydration environment.
  • Venturi injectors and Inspection Covers: With Venturi injectors and Inspection Covers, the system allows optimum control of your growing process.
  • 5" spiral tubing and 5" Dual-Flow™ fittings: The V-SYSTEM comes with sturdy 5-inch spiral tubing and Dual-Flow fittings, guaranteeing a steady and efficient nutrient flow.
  • Integrated filtration and T304 Stainless clamps: The V-SYSTEM features integrated filtration and durable T304 Stainless clamps, ensuring long-lasting and reliable performance.
  • Heavy-duty components and Push-fit feed connections: Built with heavy-duty components and easy push-fit feed connections, the V-SYSTEM is made to last through multiple growing cycles.
  • JET-STREAM® Vortex™ pump: The integrated JET-STREAM Vortex pump ensures a powerful, consistent flow of nutrients and water to your plants.
    • Specifications
  • Product Name: V-SYSTEM 12 Pot 2 Row Kit

  • Technical Information
  • Number of pots: 12
  • Number of rows: 2

  • Kit total fluid volume: 195.5 gallons (740 L)

  • Minimum assembled size (can space pots more widely for a larger footprint):
  • Length: 13' 4.2" (160.2 inches / 4070 mm)
  • Width: 3' 11.2" (47.2 inches / 1200 mm)

  • Water Pump Included with the Kit:
  • Model: V-SYSTEM Vortex Water Pump 750W 120V 15000 l/h
  • Wattage: 750 watts
  • Flow Rate: 3963 gal/hr (15000 L/hr)

  • Recommended water chiller minimum capacity: 264 gallons (1000 L)
    • Data Sheet
  • Download the instruction manual: here
  • Download the technical drawing: here
    • Kit Contents
  • The V-SYSTEM 12 Pot 2 Row Kit Includes:
  • 1 x V-SYSTEM Vortex Water Pump 750W 120V 15000 l/h
  • 12 x V-Pot 58L
  • 12 x V-Pot Base
  • 12 x V-Pot Lid
  • 12 x V-Pot Lid Inspection Cover
  • 12 x Square Net Pot
  • 12 x V-Pot Clip
  • 12 x Air Filter for V-SYSTEM Venturi, 6mm
  • 12 x Silencer for Venturi
  • 12 x Venturi Fitting
  • 12 x Venturi Air Inlet Pipe 6mm Blue (2X 4")
  • 12 x Venturi Inlet Fitting for 22mm Pipe
  • 13 x Nut 5"
  • 13 x Washer 5" Green Silicone
  • 30 x 5" Stainless Steel Clamp
  • 1 x Distribution Tee 40mm
  • 2 x DM Push-Fit Elbow 22-15mm V-SYSTEM
  • 2 x DM Push-Fit Elbow 22mm V-SYSTEM
  • 10 x DM Push-Fit Tee 22-15mm V-SYSTEM
  • 1 x 1/2" Drain Cap Fitting
  • 1 x Drain Tap 1/2"-16mm Barb
  • 2 x Elbow 5" Barbed with Drain Point
  • 3 x Elbow 5" Threaded Dual-Flow
  • 1 x Filter Manifold Complete 40mm
  • 1 x Float Valve
  • 1 x V-SYSTEM Header Pot 20L 40mm
  • 1 x Silver Lid
  • 1 x Header Pot Blank
  • 1 x Hosetail 16mm-3/4" Female Green
  • 12 x Pipe 22mm Gray Rigid 1 Meter - Venturi Feed
  • 1 x Pipe 32mm Red 1 Meter Spiral
  • 3 x Pipe 40mm Silver 1 Meter Spiral
  • 13 x Pipe 5" Silver Spiral 80cm
  • 1 x Tee 5" Barbed
  • 10 x Tee Threaded 5" Dual-Flow
  • 2 x Threaded Tank Connector 1"
  • 1 x Vortex Pump Inlet Manifold 40mm Short
  • 2 x 1" Cap for Chiller Connections
  • 1 x Tank Connector Straight 32mm
  • 1 x Tank Connector Straight 40mm
  • 1 x Terminal Manifold Left 40mm
  • 1 x Terminal Manifold Right 40mm
  • 28 x 22mm Insert for 22mm Rigid Pipe
  • 2 x Clamp Size 2
  • 8 x Clamp Size 3
  • 1 x 8mm Screwdriver for 5" Clamp
  • 1 x Wrench 5"
  • 1 x Wrench for Float Valve
  • 1 x 8mm Socket for 5" Clamp
  • 1 x Pipe Cutter 50mm
  • 3 x Silicone Grease - Food Grade
