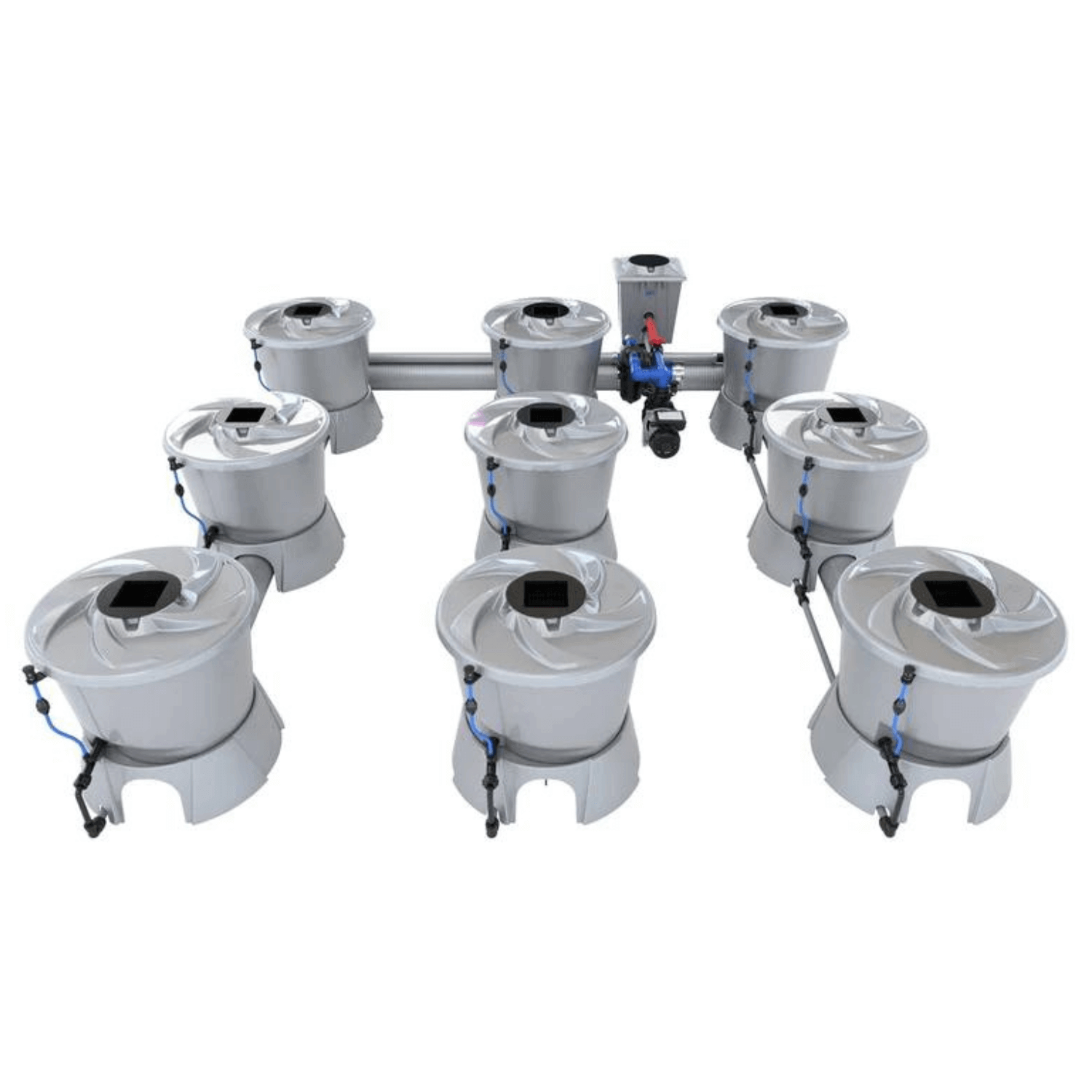

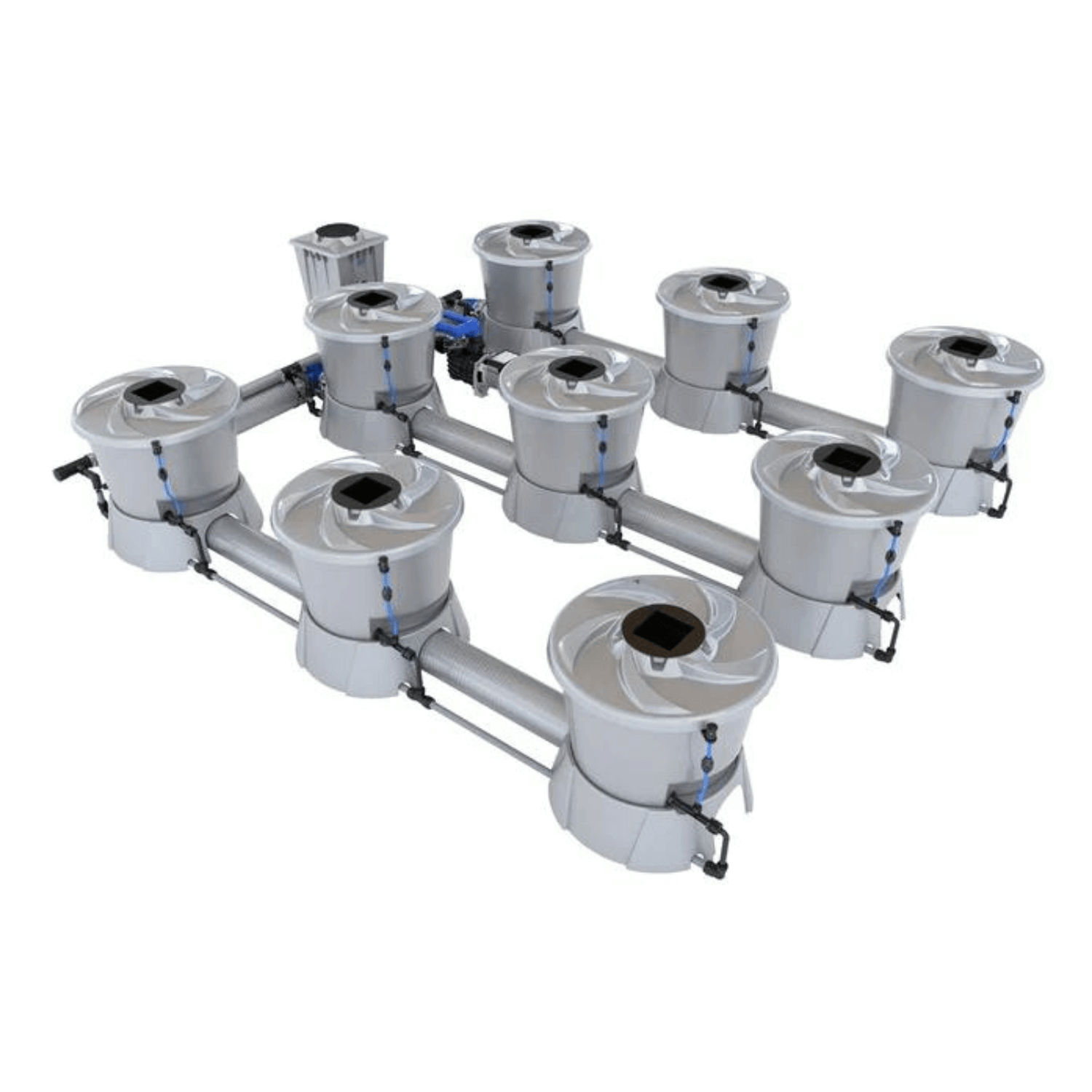

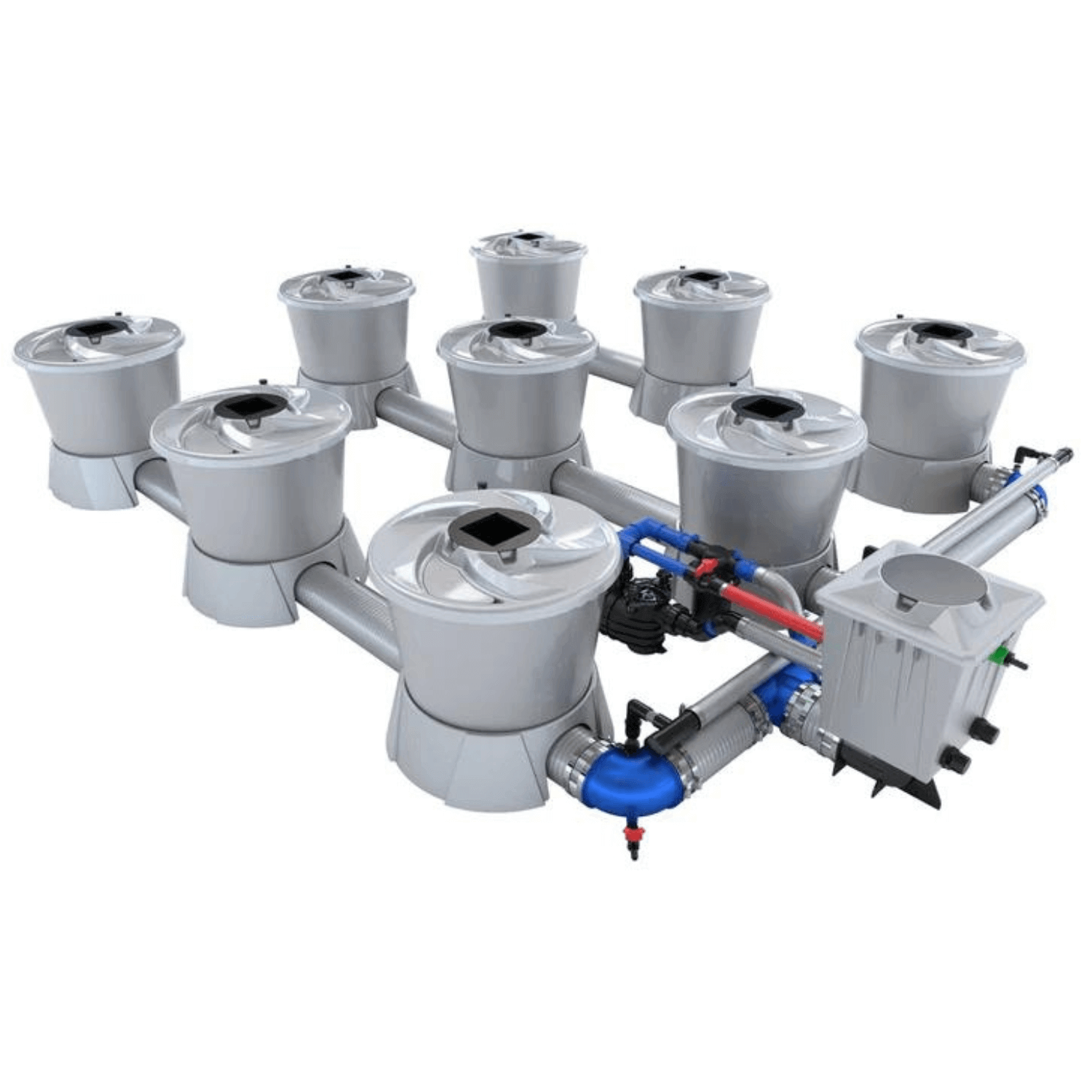

ALIEN Hydroponics V-SYSTEM 9 Pot 3 Row Kit

$3,830.54

Only 10 stock left

Description
  • Key V-SYSTEM Benefits:
  • Direct nutrient distribution
  • Maximum oxygen saturation
  • No air pump needed
  • No heat transferred
  • Vortex fluid motion
  • Naturally aspirated
  • Supports large plants
  • Pots and system completely drain
  • Prevents root clogging
  • Made in Britain

  • Key V-SYSTEM Features:
  • 15 gallon (58L) V-POT
  • Water fill line
  • Total-drainage bases
  • Venturi injectors
  • Inspection Covers
  • 5" spiral tubing
  • 5" Dual-Flow™ fittings
  • Integrated filtration
  • T304 Stainless clamps
  • Heavy-duty components
  • Push-fit feed connections
  • JET-STREAM® Vortex™ pump
    • Specifications
  • Product Name: V-SYSTEM 9 Pot 3 Row Kit

  • Technical Information
  • Number of pots: 9
  • Number of rows: 3

  • Kit total fluid volume: 146.4 gallons (554 L)

  • Minimum assembled size (can space pots more widely for a larger footprint):
  • Length: 6' 4.8" (76.8 inches / 1950 mm)
  • Width: 5' 9.3" (69.3 inches / 1760 mm)

  • Water Pump Included with the Kit:
  • Model: V-SYSTEM Vortex Water Pump 370W 120V 13200 l/h
  • Wattage: 370 watts
  • Flow Rate: 3487 gal/hr (13200 L/hr)

  • Recommended water chiller minimum capacity: 198 gallons (750 L)
    • Data Sheet
  • Download the instruction manual: here
  • Download the technical drawing: here
    • Kit Contents
  • The V-SYSTEM 9 Pot 3 Row Kit Includes:
  • 1 x V-SYSTEM Vortex Water Pump 370W 120V 13200 l/h
  • 9 x V-Pot 58L
  • 9 x V-Pot Base
  • 9 x V-Pot Lid
  • 9 x V-Pot Lid Inspection Cover
  • 9 x Square Net Pot
  • 9 x V-Pot Clip
  • 9 x Air Filter for V-SYSTEM Venturi, 6mm
  • 9 x Silencer for Venturi
  • 9 x Venturi Fitting
  • 9 x Venturi Air Inlet Pipe 6mm Blue (2X 4")
  • 9 x Venturi Inlet Fitting for 22mm Pipe
  • 10 x Nut 5"
  • 10 x Washer 5" Green Silicone
  • 26 x 5" Stainless Steel Clamp
  • 1 x Distribution Tee 40mm
  • 3 x DM Push-Fit Elbow 22-15mm V-SYSTEM
  • 3 x DM Push-Fit Elbow 22mm V-SYSTEM
  • 6 x DM Push-Fit Tee 22-15mm V-SYSTEM
  • 1 x 1/2" Drain Cap Fitting
  • 1 x Drain Tap 1/2"-16mm Barb
  • 2 x Elbow 5" Barbed with Drain Point
  • 4 x Elbow 5" Threaded Dual-Flow
  • 1 x Filter Manifold Complete 40mm
  • 1 x Float Valve
  • 1 x V-SYSTEM Header Pot 20L 40mm
  • 1 x Silver Lid
  • 1 x Header Pot Blank
  • 1 x Hosetail 16mm-3/4" Female Green
  • 9 x Pipe 22mm Gray Rigid 1 Meter - Venturi Feed
  • 1 x Pipe 32mm Red 1 Meter Spiral
  • 4 x Pipe 40mm Silver 1 Meter Spiral
  • 10 x Pipe 5" Silver Spiral 80cm
  • 2 x Tee 5" Barbed
  • 6 x Tee Threaded 5" Dual-Flow
  • 2 x Threaded Tank Connector 1"
  • 1 x Vortex Pump Inlet Manifold 40mm Long
  • 2 x 1" Cap for Chiller Connections
  • 1 x Tank Connector Straight 32mm
  • 1 x Tank Connector Straight 40mm
  • 1 x Terminal Manifold Left 40mm
  • 1 x Terminal Manifold Center 40mm
  • 1 x Terminal Manifold Right 40mm
  • 24 x 22mm Insert for 22mm Rigid Pipe
  • 2 x Clamp Size 2
  • 10 x Clamp Size 3
  • 1 x 8mm Screwdriver for 5" Clamp
  • 1 x Wrench 5"
  • 1 x Wrench for Float Valve
  • 1 x 8mm Socket for 5" Clamp
  • 1 x Pipe Cutter 50mm
  • 3 x Silicone Grease - Food Grade
